Product Center
10 product categories covering all smart manufacturing needs
Indoor Light-Duty Transport Robot
| Parameter | DD80 Lightweight Material Handling Robot Lightweight, highly maneuverable, rated load 80 kg | DD150 Heavy-Duty AGV 15 0KG Heavy-Duty | Customizable Vehicle | DD300 Heavy-Duty Material Handling Robot 300KG heavy-duty load capacity | customizable carrier | DD300E Heavy-Duty Material Moving Robot Oversized size for larger items |
|---|---|---|---|---|
| Overall Dimensions | 570×500×1240mm | 740×500×1240mm | 740×500×1240mm | 900×600×1240mm |
| Tray Size | 424×500mm | 580×500mm | 580×500mm | 770×600mm |
| Payload | 80 kg | 150 kg | 300 kg | 300 kg |
| Speed | 1.2m/s | 1.2m/s | 1.2m/s | 1.2m/s |
| Minimum Passing Width | 70 cm | 70 cm | 70 cm | 75cm |
| Incline | ≤8° | ≤8° | ≤8° | ≤8° |
| Obstacle | 20mm | 20mm | 20mm | 20mm |
| Positioning Accuracy | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° |
| Network | 4G/WiFi | 4G/WiFi | 4G/WiFi | 4G/WiFi |
| Battery | 15Ah | 30Ah | 30Ah | 30Ah |
| Battery Life | 10 hours | 10 hours | 9 hours | 9 hours |
| Charging time | 2.5 hours | 5.5 hours | 5.5 hours | 5.5 hours |
Lifting Transport Robot
| Parameter | DL150 Automatic Lifting Transport Robot Automatic lifting adapts flexibly to various custom shelving units | DL300 Heavy-Duty Lifting and Transport Robot 30 0KG Heavy-Duty Lift for Flexible Deployment | DL300E Extra-Large Lifting Transport Robot Oversized size; supports larger custom shelving units | DL600 Ultra-High-Capacity Lifting Robot 60 0KG ultra-high load capacity lift, flexible deployment |
|---|---|---|---|---|
| Overall Dimensions | 740×500×1240mm | 740×500×1240mm | 900×600×1240mm | 950×650×1314mm |
| Shelf Dimensions | 700×660×350mm/ outer × 640×600×32 inner mm or custom | 700×660×350mm/ outer × 640×600×32 inner mm or custom | 900×790×363mm/ outer × 840×730×33 inner mm or custom | 920×860×423mm/ outer × 860×800×39 inner mm or custom |
| Payload | 150 kg | 300 kg | 300 kg | 600 kg |
| Lift Height | 50mm | 50mm | 50mm | 50mm |
| Speed | 1.2m/s | 1.2m/s | 1.2m/s | 1.2m/s |
| Minimum Passing Width | 70 cm | 70 cm | 75cm | 80 cm |
| Incline | ≤8° | ≤8° | ≤8° | ≤5° |
| Positioning Accuracy | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° |
| Network | 4G/WiFi | 4G/WiFi | 4G/WiFi | 4G/WiFi |
| Battery | 30Ah | 30Ah | 30Ah | 48V 22.5Ah |
| Battery Life | 10 hours | 9 hours | 9 hours | 8 hours |
| Charging time | 5.5 hours | 5.5 hours | 5.5 hours | 1.1 hours |
Lift Truck AGV
| Parameter | DS150 Submerged AGV Concealed lift, flexible operation, cluster scheduling | DS300 Stealth Mobile Robot Concealed lift, flexible operation, cluster scheduling | DS300E Extended Stealth Robot Oversized size; supports larger custom shelving units | DS600 High-Capacity Stealth Robot 60 0KG ultra-high load capacity lift, flexible deployment |
|---|---|---|---|---|
| Overall Dimensions | 740×500×310mm | 740×500×310mm | 900×600×310mm | 950×650×365mm |
| Shelf Dimensions | 700×660×350mm/ outer × 640×600×32 inner mm or custom | 700×660×350mm/ outer × 640×600×32 inner mm or custom | 900×790×363mm/ outer × 840×730×33 inner mm or custom | 920×860×423mm/ outer × 860×800×39 inner mm or custom |
| Payload | 150 kg | 300 kg | 300 kg | 600 kg |
| Lift Height | 50mm | 50mm | 50mm | 50mm |
| Speed | 1.2m/s | 1.2m/s | 1.2m/s | 1.2m/s |
| Minimum Passing Width | 70 cm | 70 cm | 75cm | 80 cm |
| Incline | ≤8° | ≤8° | ≤8° | ≤5° |
| Positioning Accuracy | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° |
| Network | 4G/WiFi | 4G/WiFi | 4G/WiFi | 4G/WiFi |
| Battery | 30Ah | 30Ah | 30Ah | 48V 22.5Ah |
| Battery Life | 10 hours | 9 hours | 9 hours | 8 hours |
| Charging time | 5.5 hours | 5.5 hours | 5.5 hours | 1.1 hours |
Towed Towing Robot

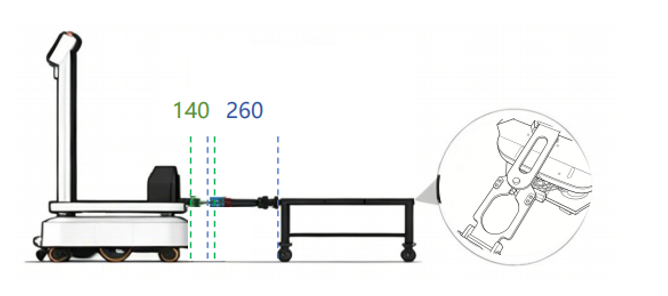

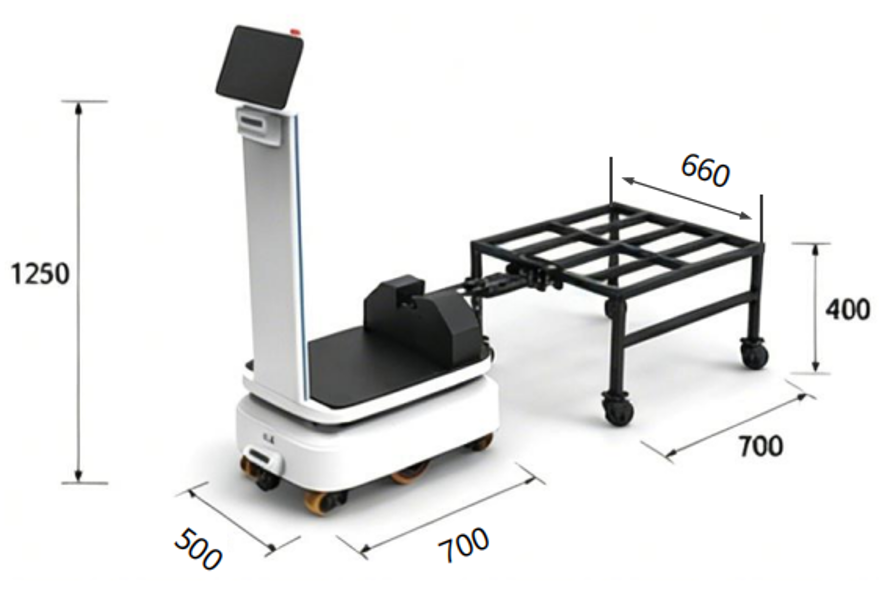

D300T Smart Tow Robot
Integrated Vehicle and Chassis for Flexible Logistics Handling
| Robot Dimensions | 700 × 500mm( L × W |
| Default Shelf Size | 700×660×400mm |
| Tow Hitch | 140mm |
| Shelf Front Device | 260mm |
| Tow Hitch Mounting Height | 400mm |
| Maximum straight-line occupancy length | 1770mm |
Roller-type AGV
DC100 Roller AGV
Roller Conveyor | Height Adjustable | Flexible Docking Production Line
| Overall Dimensions | 740×500×700mm( L×W×H |
| Transfer Method | Roller (Customizable) |
| Self-weight | 60 kg |
| load | 100 kg |
| Stop Angle Accuracy | ±1° |
| Stop Position Accuracy | ±5mm |
| Rated operating time | 8h |
| Minimum Passing Width | 70cm |
| Cargo Width | 200-450mm |
| Adjustable roller height | 700-900mm |
Delivery Robot

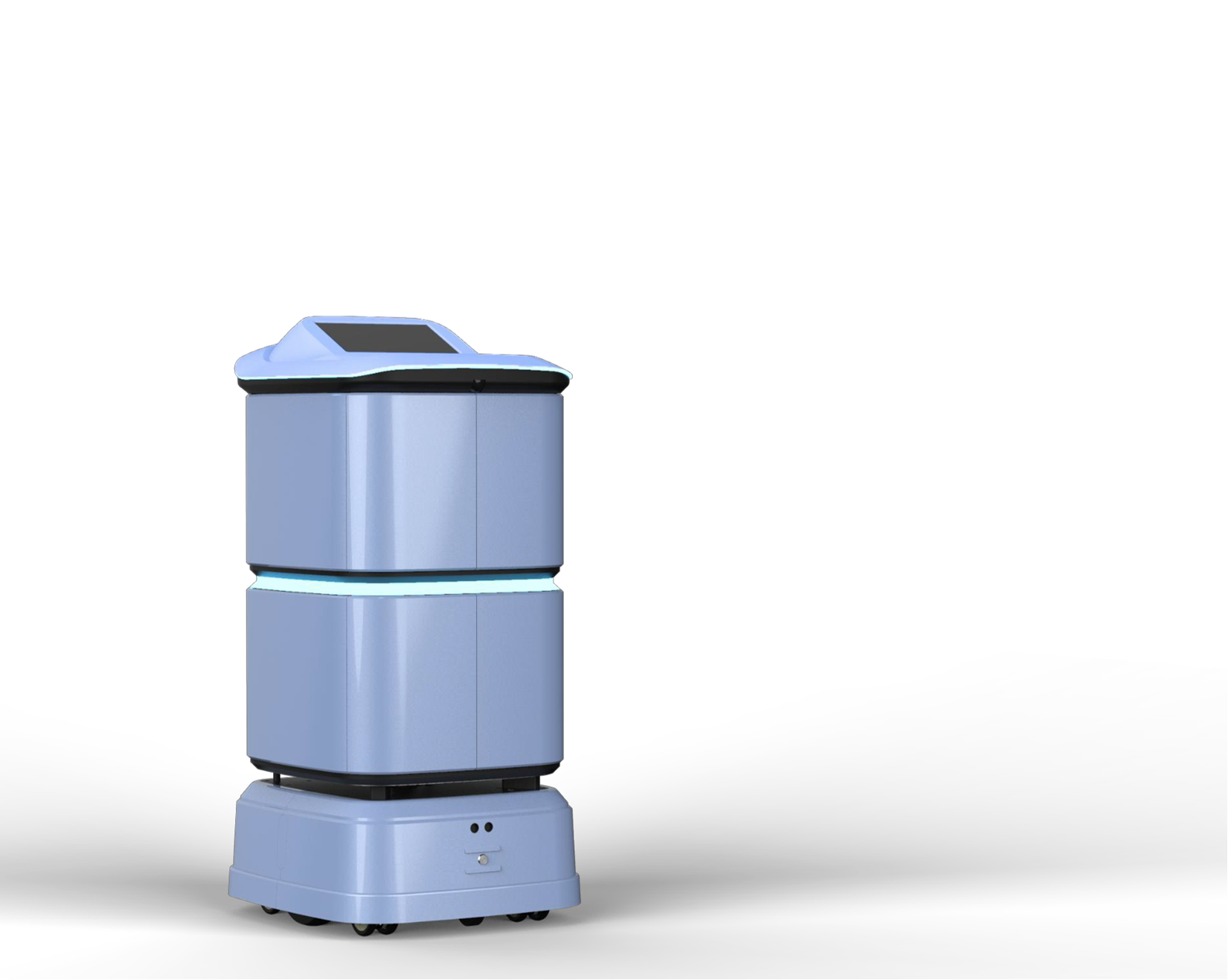

DAX2112 4-Cavity Delivery Robot Standard Edition
4-Compartment Storage | Self-Delivery | Automated Park Logistics
| Overall Dimensions | 52×48×12 cm |
| Net Weight | 55kg |
| Maximum Load | 40 kg |
| Speed | 0.5~1.2 m/s |
| Minimum Passing Width | 70cm |
| Climbing | 10° |
| Obstacle Clearance Capability | 17MM |
| Positioning Accuracy | centimeter-level |
| Network | 4G/WiFi |
| Battery Capacity | 15Ah |
| Runtime | Run continuously for >10 hours |
| Charging time | 3-4 hours |
Forklift搬运机器人

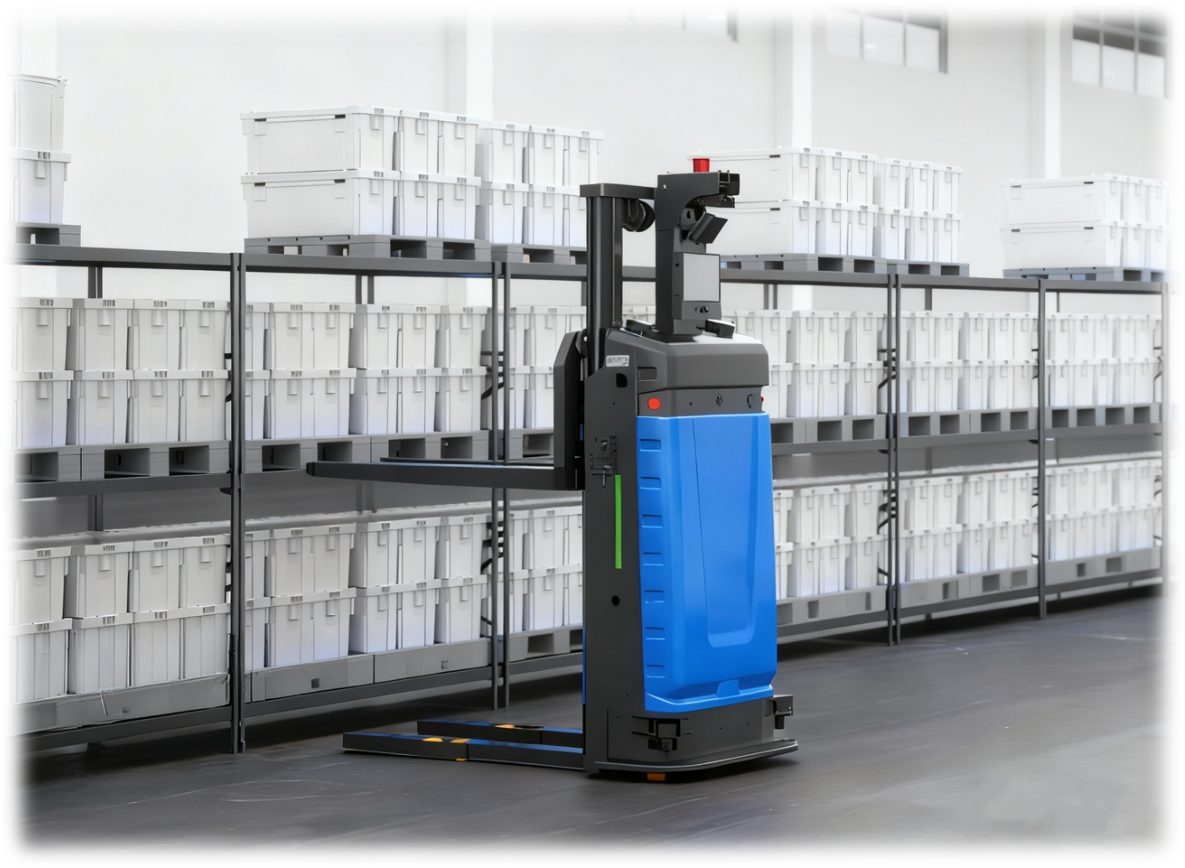

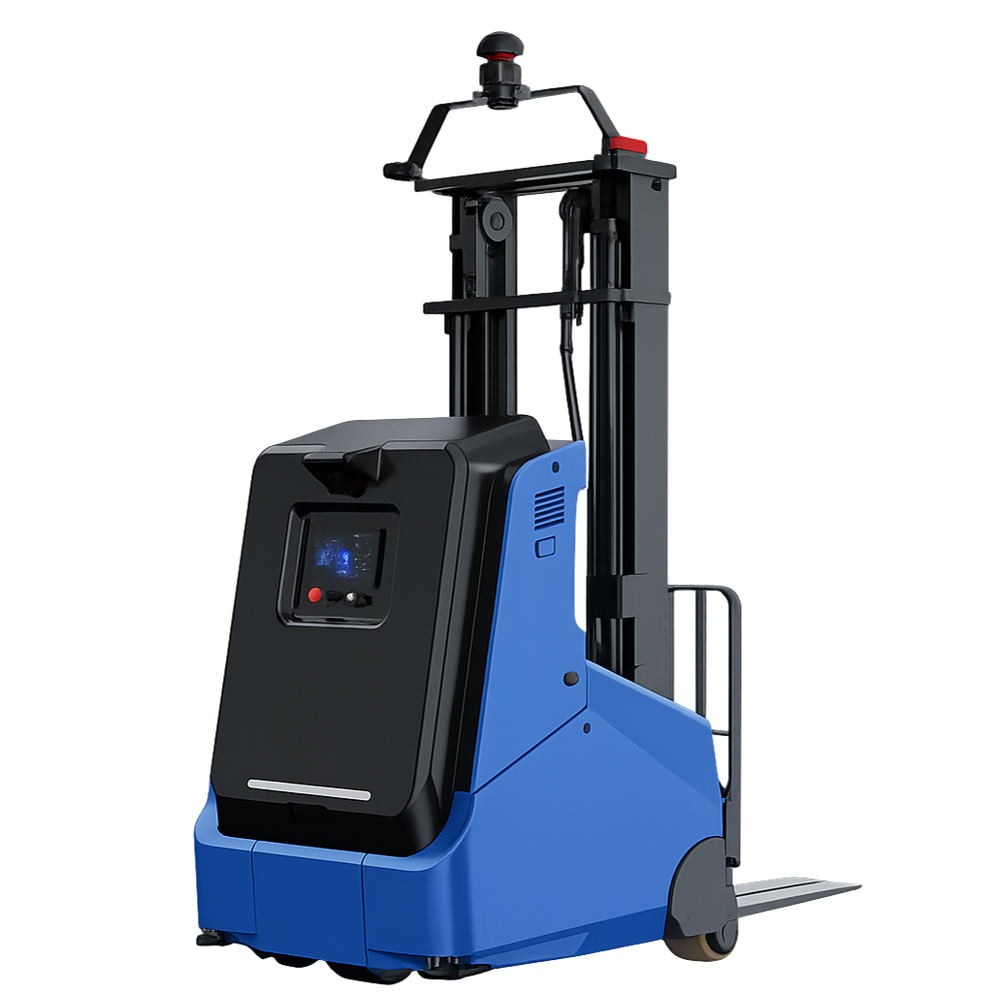

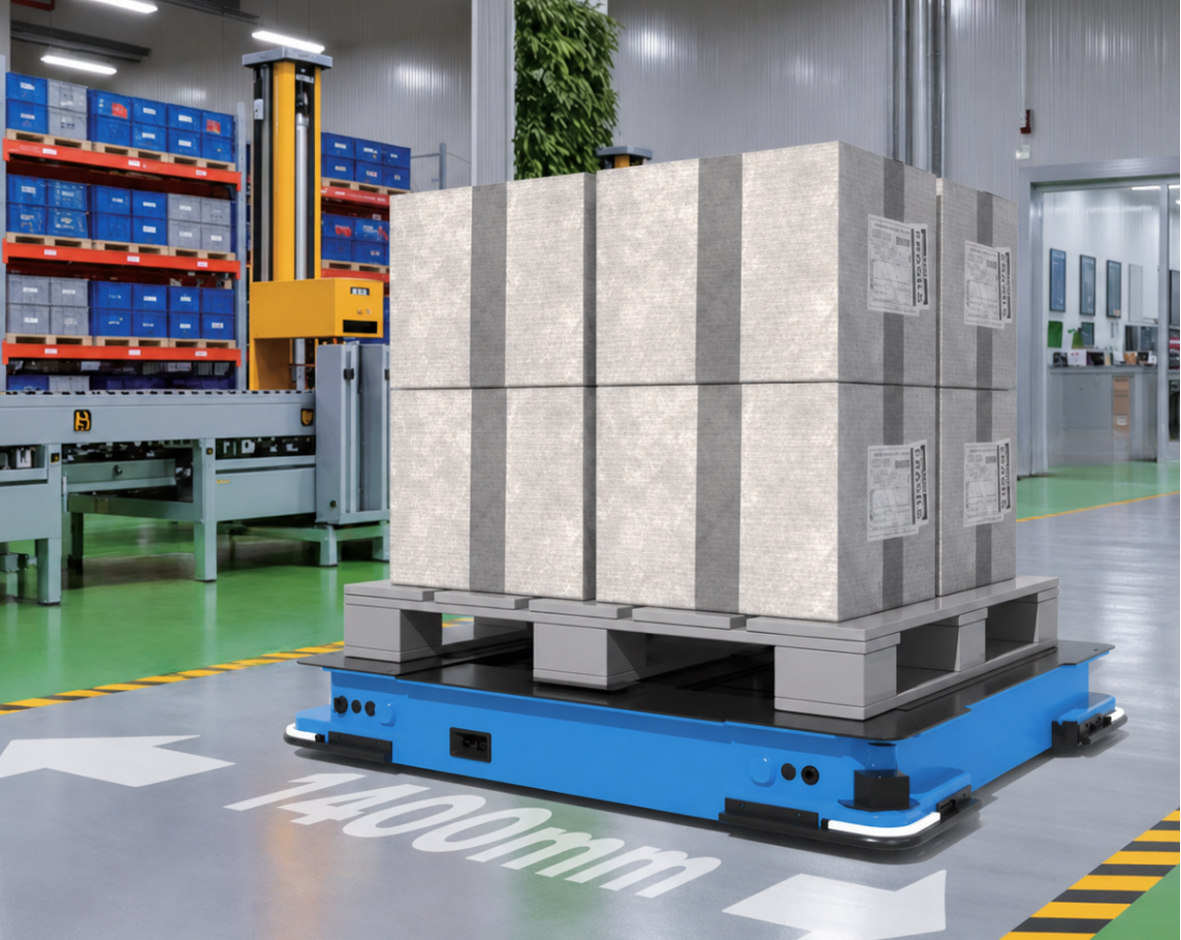

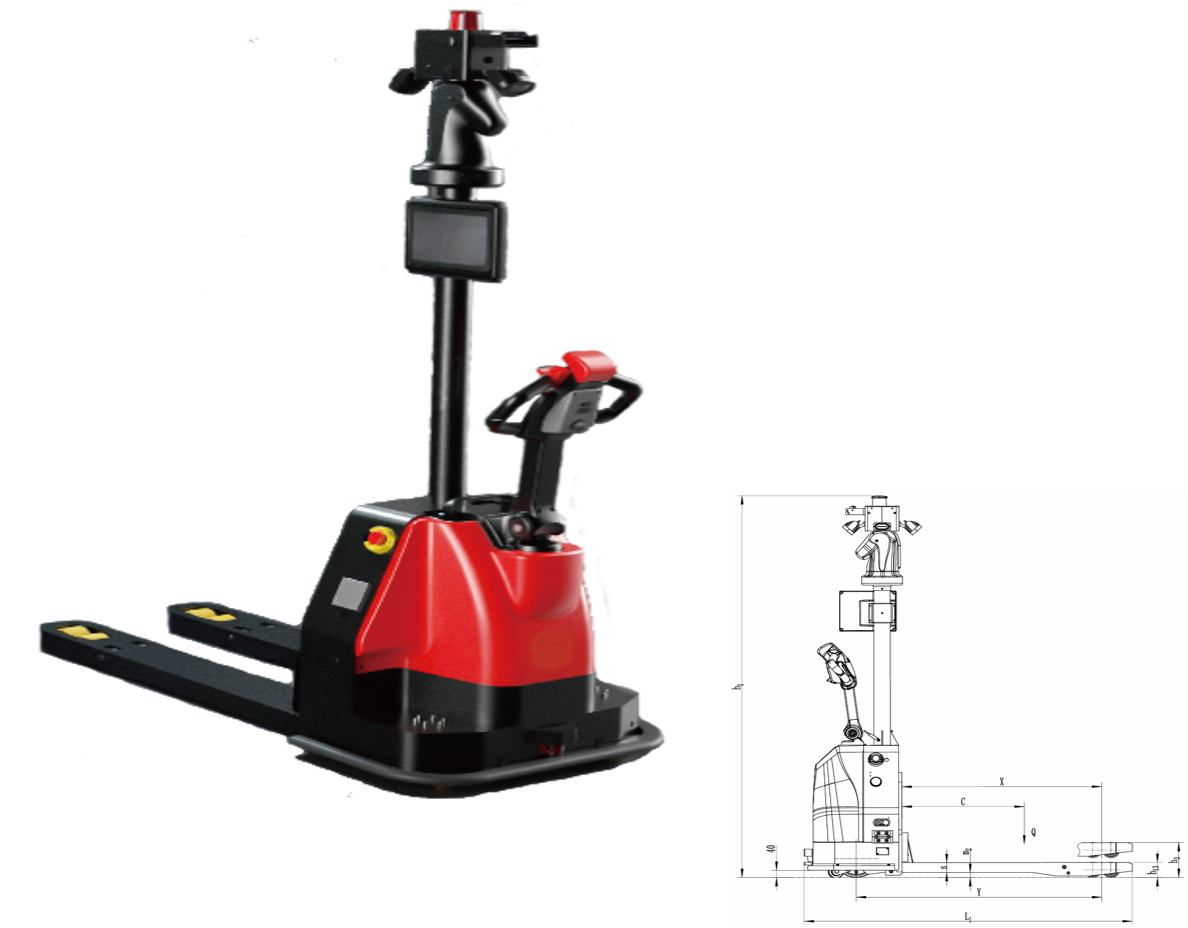

| Parameter | DF1500 Smart Forklift AGV Flexible and smart; automatically connects to other devices | DFS-1500 Intelligent Stack Crane Robot High-Bay Stacking, Precision Access, Automated Warehousing | DFB-2000 Smart Stacker Forklift Robot 2 Ton Heavy-Duty Stacker: Efficient Warehousing & Material Handling | DFC-1000 Submersive Forklift Robot Lightweight and compact for easy maneuvering in tight spaces |
|---|---|---|---|---|
| Overall Dimensions | 1635×812×1500mm( L×W×H | 1700×1004×2180mm( L×W×H | 2579×1050×1847mm( L×W×H | 1296×1226×183mm( L×W×H |
| Fork Dimensions | 55/170/1150 s/e/l | 60/170/1150 s/e/l | 40/122/1100 s/e/l | 38/172/1230 s/e/l |
| Rated Load | 1500 kg | 1500 kg | 2000 kg | 1000 kg |
| Lift Height | 95mm | 1600-2500mm | 2100mm | 610mm |
| Speed | 1.5m/s adjustable | 1.5m/s adjustable | 1.8/2.2 m/s | 1400mm |
| Turning aisle width | 2200mm | 2300mm | 2910mm | 1.5m/s adjustable |
| Incline | ≤5° | ≤5° | ≤5° | 1465mm |
| Positioning Accuracy | ±1 mm / ±1° | ±5mm/±1° | ±5mm/±1° | ±5mm/±1° |
| Network | 4G/WiFi | 4G/WiFi | 4G/WiFi | 4G/WiFi |
| Battery Capacity | 24V 60Ah | 24V 205Ah | 48V 205Ah | 48V 40Ah |
| Runtime | Run continuously for >5 hours | Run continuously for >8 hours | Run continuously for >8 hours | Run continuously for >8 hours |
| Charging time | 3 hours | 1.6 hours | 5 hours | 1 hours |
AI Vision Products
Machine Vision Inspection System
Miss rate below 0.1%
| Detection Speed | 500 pcs/min |
| Precision | 0.01mm |
ESD & Environmental Hardware
| Parameter | ESD Real-Time Monitoring Terminal ESD compliance rate 100% | Temperature and Humidity Sensor Real-time alerts for environmental anomalies |
|---|---|---|
| Monitoring Method | Real-time monitoring | ±0.3℃ |
| Upload Data | Auto-upload | Wireless transmission |
IoT Device
Industrial Gateway
Full coverage of device data collection
| Protocol Support | Multiple protocols |
| Compute Power | Edge Computing |
Visitor Terminal
Smart Visitor Kiosk
90% increase in registration efficiency
| Recognition Feature | ID Card Recognition |
| Comparison Method | Face Comparison |
Software Product
| Parameter | Lightweight MES System Payback in 6-12 months | Intelligent Production Scheduling System Production scheduling efficiency increased by 80% |
|---|---|---|
| Deployment method | Cloud Deployment | AI Algorithms |
| Device Support | Mobile support | Gantt Chart |
